Sold

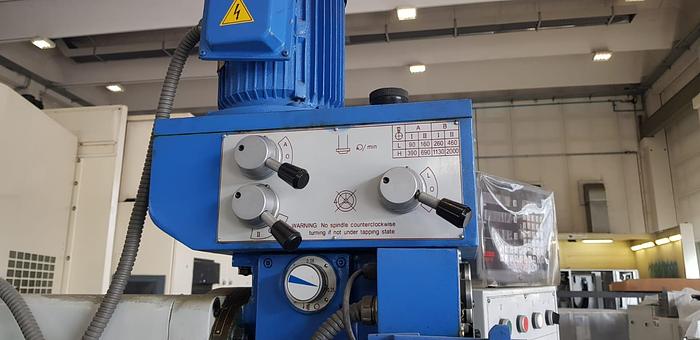

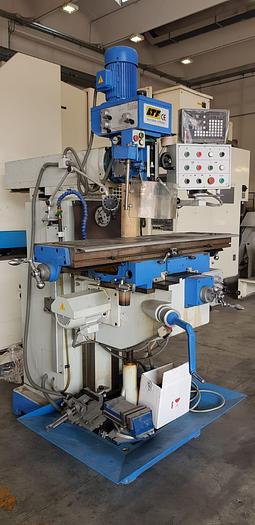

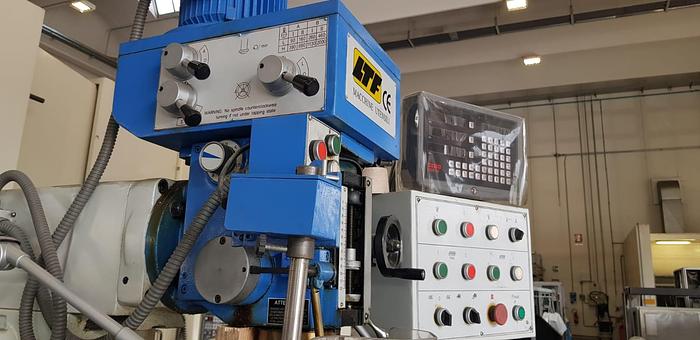

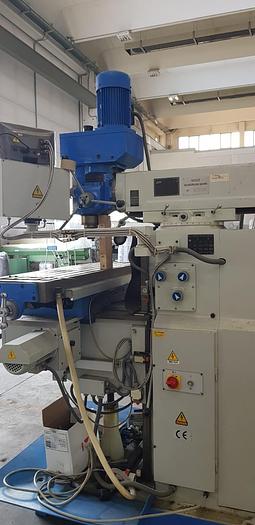

2010 LTF 414.30
Specifications
| Manufacturer | LTF |
| Model | 414.30 |
| Year | 2010 |
| Type | UNIVERSAL MILLING MACHINE |
| Condition | Used |
| Status | Very good |
| Table manual travel (X - Y) | 800x300 mm |
| Table automatic travel (X - Y) | 750x250 mm |
| Z axis travel | 400 mm |
| Max manual drilling capacity | Ø 50 mm |
| Max automatic drilling capacity on cast iron/steel | Ø 12/10 mm |
| Max vertical milling capacity | Ø 25 mm |
| Spindle taper | ISO 40 |
| Vertical spindle speed | 90÷2.000 rpm - N. 8 chuck speeds |
| Horizontal spindle speed | 38÷1.310 rpm - N. 12 chuck speeds |
| Distance vertical spindle/column | 200-550 mm |
| Distance spindle nose/worktable | 140-540 mm |
| Distance spindle centre/worktable | 50-450 mm |
| Quill stroke | 120 mm |
| Worktable dimensions | 1.320x320 mm |
| Slide rotates | ± 180° |
