Sold

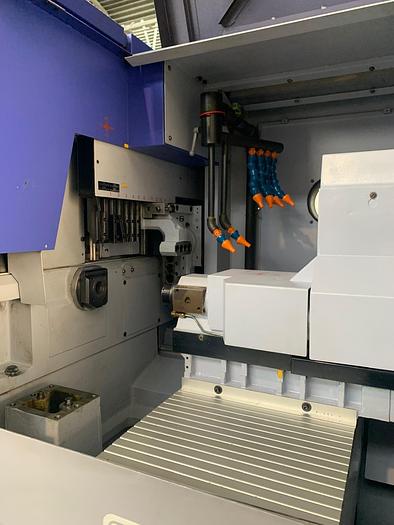

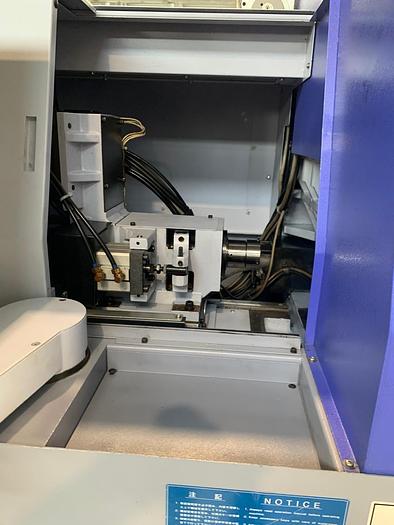

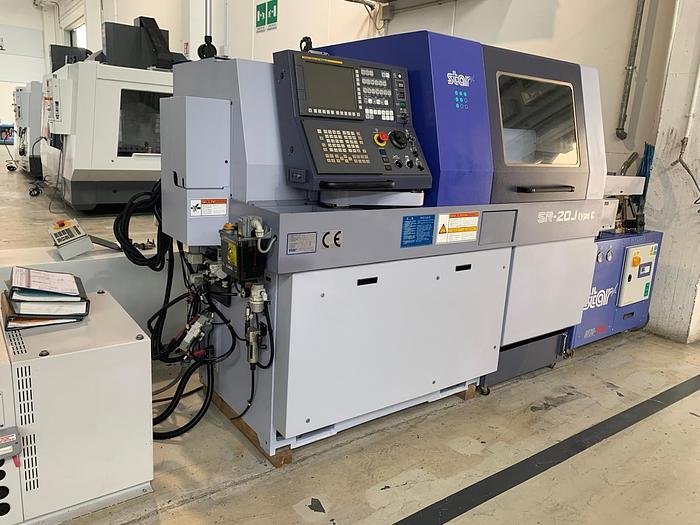

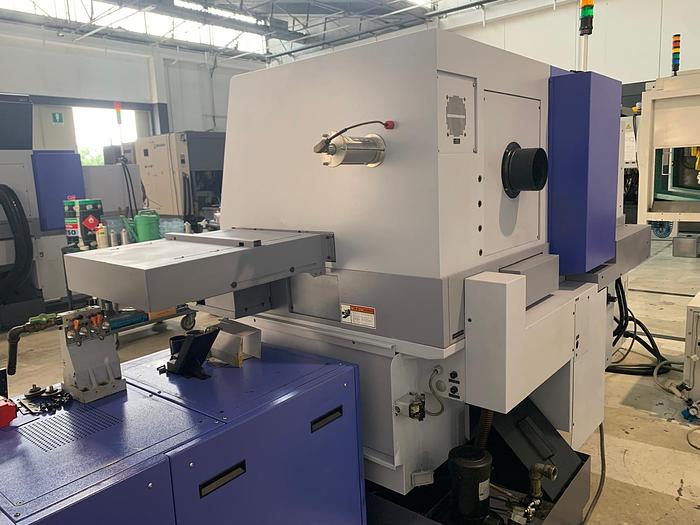

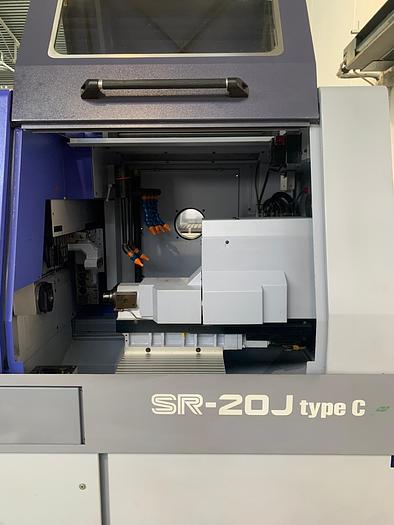

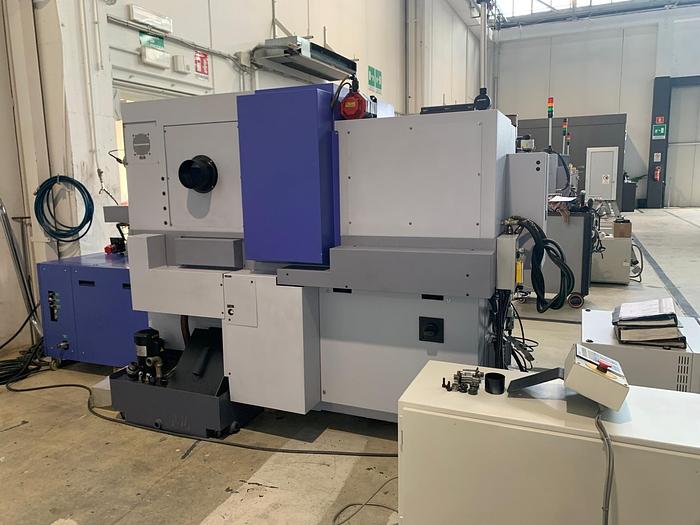

2015 STAR SR-20J Type C

Description

The STAR SR-20J Type C CNC sliding headstock lathe, year 2015, is a high-precision machine designed for efficient production of complex small-diameter components in continuous manufacturing environments. This used STAR Swiss-type CNC lathe, offered in excellent condition, represents an ideal solution for precision turning applications in medical, automotive, electronics, and micromechanical industries.

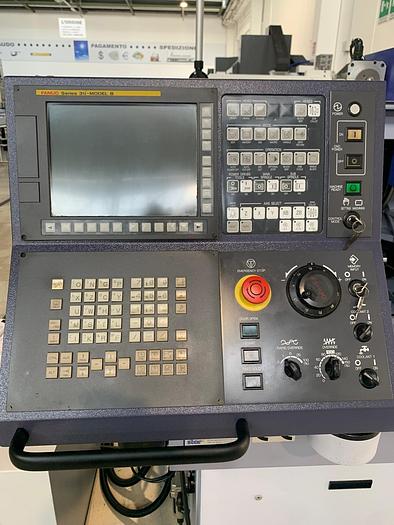

Equipped with the reliable Fanuc 31-i B CNC control, one of the most widely used industrial CNC systems worldwide, the machine ensures fast processing speed, operational stability, and exceptional machining accuracy during multi-axis operations. The 7-axis configuration allows complex parts to be completed in a single machining cycle, reducing production time and secondary operations.

With a maximum turning diameter of Ø 20 mm and a maximum turning length of 205 mm, combined with a 205 mm sliding headstock stroke, this Swiss-type CNC lathe is perfectly suited for bar machining and high-volume precision production.

The main spindle reaches speeds up to 10,000 rpm with 3.7 kW spindle power, delivering excellent performance for both roughing and high-precision finishing operations across a wide range of materials.

The machine is supplied with an FMB MINIMAG 3200/A bar feeder, enabling automated bar production and unattended machining cycles, significantly increasing overall manufacturing efficiency. A chip conveyor is included to ensure efficient chip evacuation and clean operating conditions during long production runs.

Ready for immediate production, this used STAR SR-20J Type C represents an excellent investment for companies seeking a reliable, precise, and high-productivity CNC Swiss-type lathe.

Specifications

ManufacturerSTAR
ModelSR-20J Type C
Year2015
Stock Number00041
TypeSWISS TYPE CNC LATHE
ConditionUsed
StatusVery good
Type of controlFanuc 31-i B
Max. turning diameterØ 20 mm
Turning length205 mm
Rotation speed10,000 rpm
Spindle power2.2/3.7 Kw
No. of axles7
Bar loaderFMB MINIMAG 3200/A
EquipmentChip conveyor
