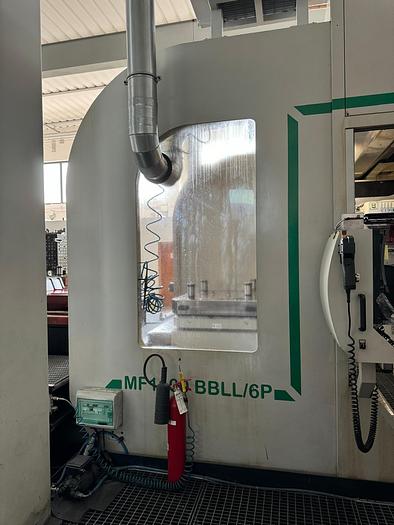

2009 IMSA MF1100BBLL 6P

The IMSA MF1100BBLL 6P CNC deep hole drilling machine (Year 2009) is a high-performance deep hole drilling and milling center engineered for precision machining of large and heavy components requiring high accuracy and reliability. This used IMSA deep drilling machine, maintained in excellent condition, offers advanced technology and outstanding productivity for demanding industrial applications.

Designed for high-precision deep hole drilling operations, the machine achieves a maximum single-cycle drilling depth of 1,000 mm (V axis), making it ideal for mold & die manufacturing, oil & gas components, aerospace parts, automotive tooling, and heavy mechanical engineering.

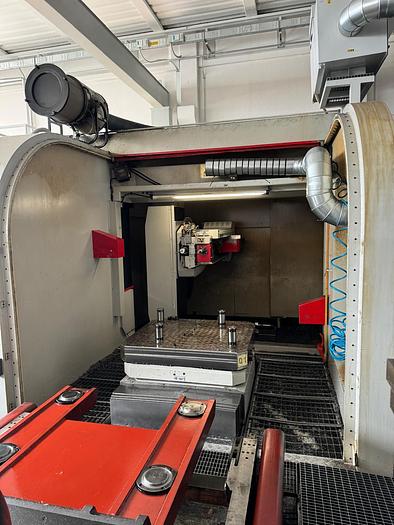

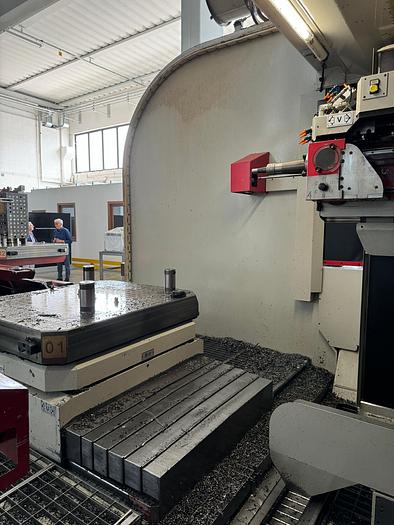

The machine features generous axis travels including 1,250 mm on the X axis, 1,000 mm on the Y axis, and 500 mm on the W axis, ensuring maximum flexibility when machining complex and large workpieces. The rotary clamping table (1,000 x 1,200 mm) supports workpieces up to 18,000 kg, guaranteeing excellent stability and machining precision even during heavy-duty operations.

High positioning accuracy is ensured by the B axis with 360,000 positions per revolution, while the A axis tilting capability (+20° / -20°) allows angled drilling and multi-direction machining, significantly expanding production possibilities.

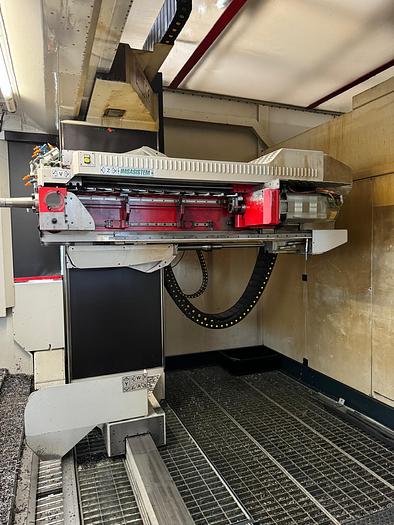

The drilling spindle operates at speeds from 1 to 4,200 rpm with 9 kW spindle power, delivering optimal performance for deep hole drilling applications. Additionally, the integrated milling spindle reaches 4,000 rpm with ISO 40 spindle taper, enabling combined drilling and milling operations within a single setup.

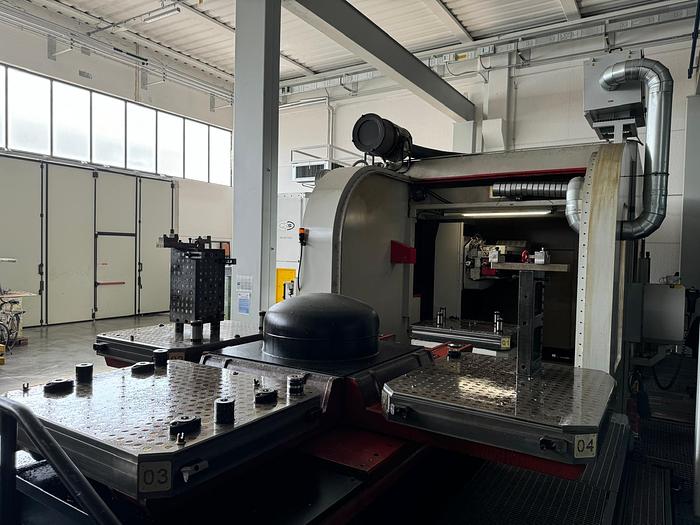

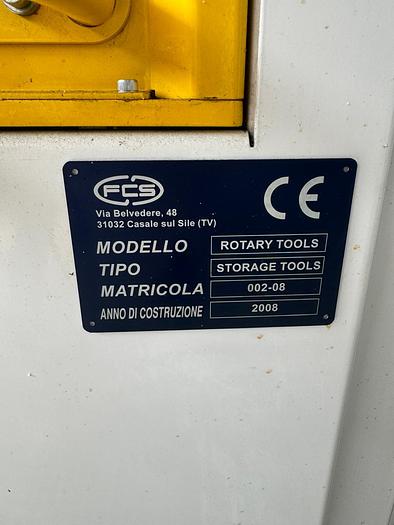

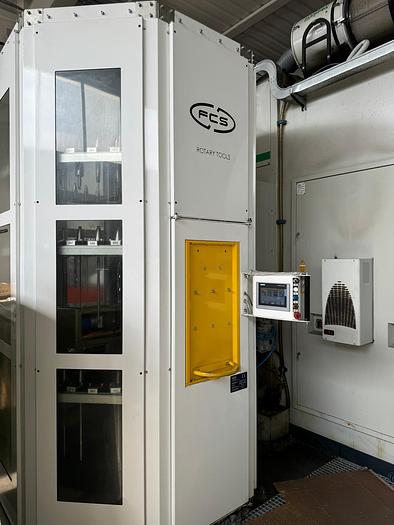

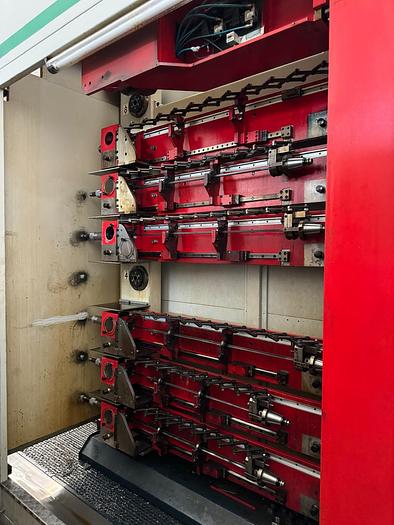

Productivity is enhanced by a large 108-position automatic tool changer (roto-translating type), reducing downtime and allowing long unattended machining cycles. The machine is also equipped with an FCS Orion pallet changing system, enabling simultaneous setup and machining for increased production efficiency.

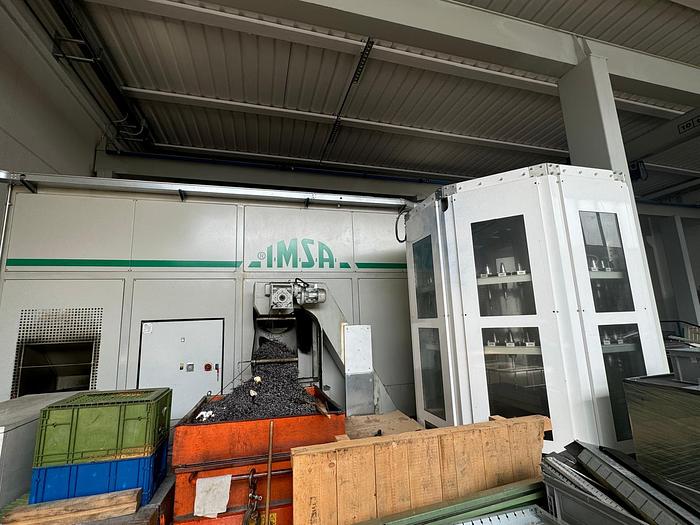

A chip conveyor is included to ensure efficient chip evacuation and clean working conditions during continuous production.

Offered in excellent working condition and ready for immediate operation, this IMSA MF1100BBLL 6P deep hole drilling center represents an outstanding opportunity for manufacturers seeking a high-precision CNC deep drilling machine with extended automation capabilities.
