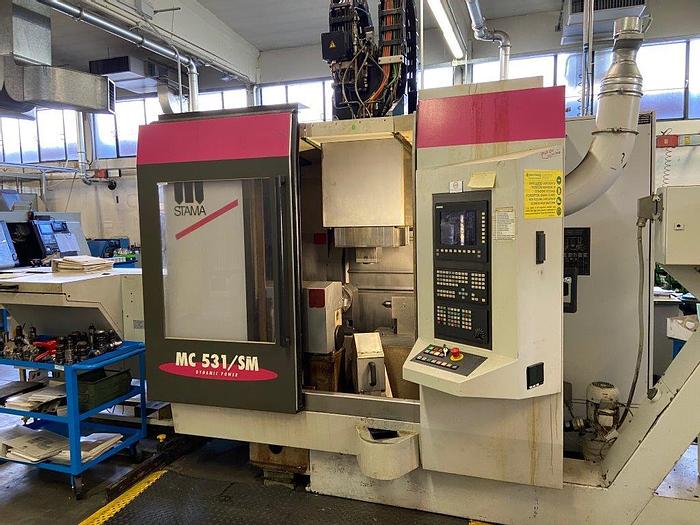

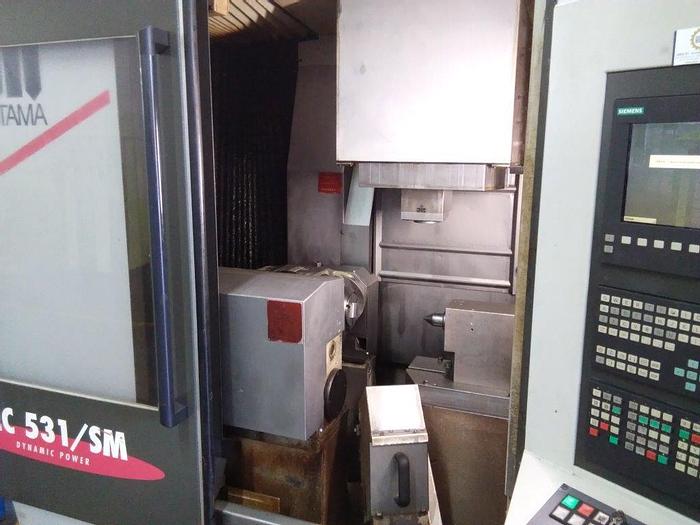

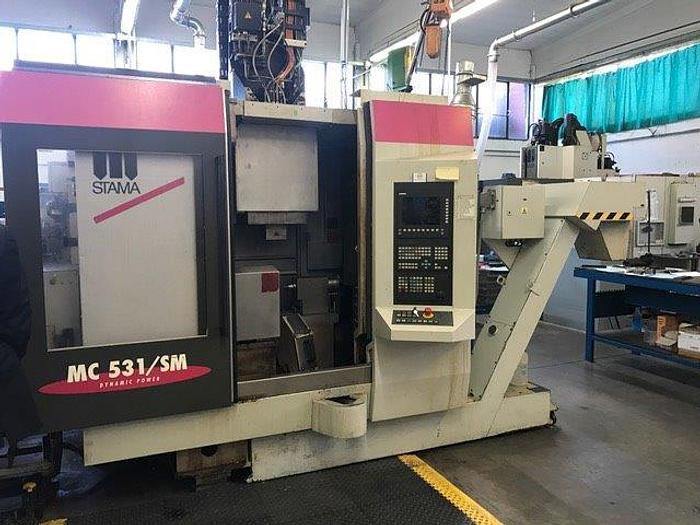

STAMA MC 531/SM
Specifications
| Manufacturer | STAMA |
| Model | MC 531/SM |
| Type | VERTICAL CNC MACHINING CENTER |
| Condition | Used |
| Status | Good |

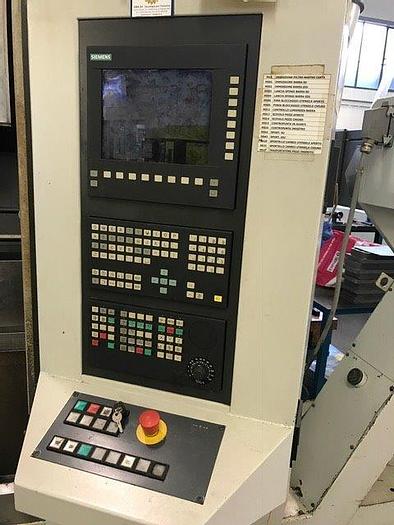

| Type of control | Siemens 840D |
| X axis travel | 800 mm |
| Y axis travel | 400 mm |
| Z axis travel | 350 mm |

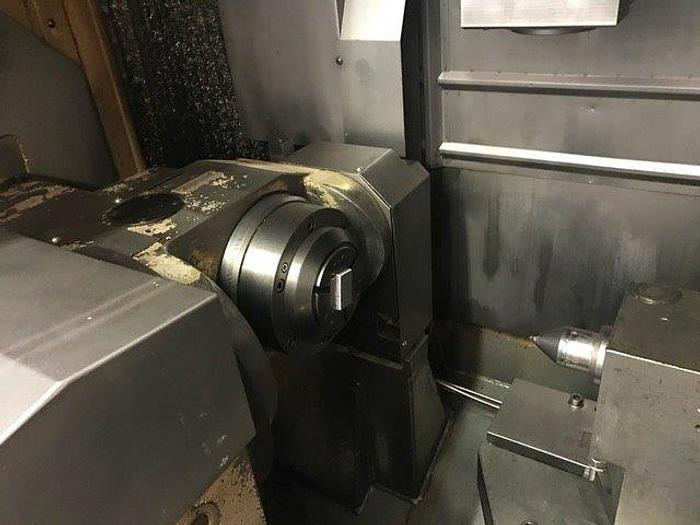

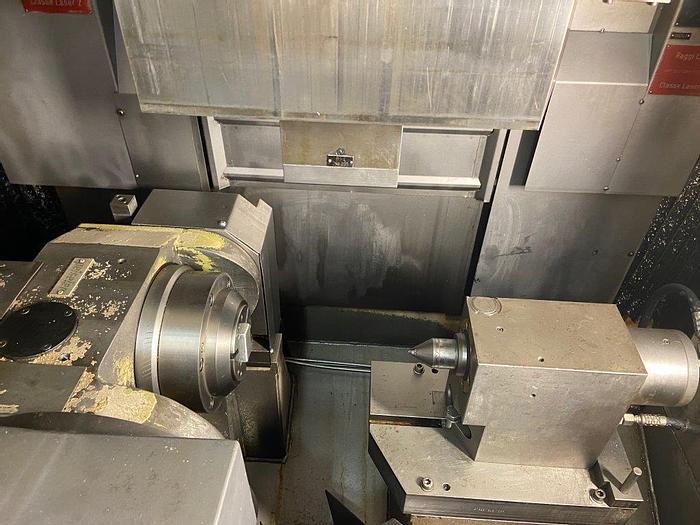

| 4th/5th axis in continuos (A/B) | 105.000 x 360.000 |
| Rapid feed | 45 m/min |
| Table diameter | Ø 210 mm, spindle taper ASA 8", clamping Hainbuch with quick coupler Ø 180 mm |
| Distance between table-spindle nose | 265-615 mm |
| Spindle speed | 36-12.000 rpm |
| Spindle power | 30 Kw |

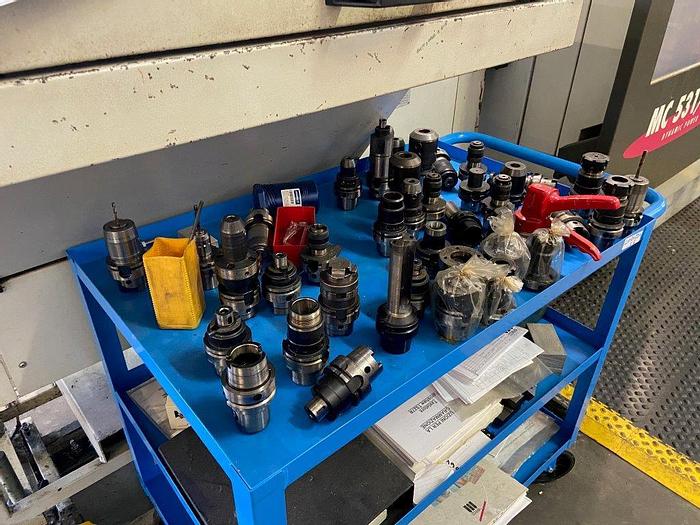

| Spindle taper | HSK 63 |
| Tool turret | 78 positions |

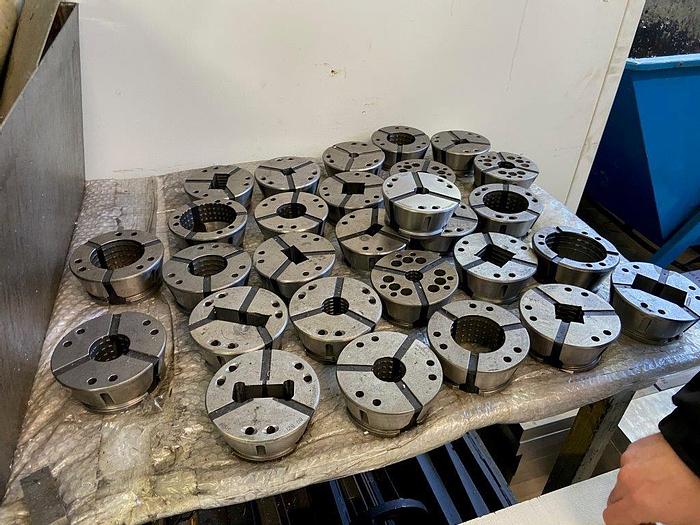

| Automatic clamp | Hainbuch |
| Through-Spindle Coolant | 70 Bar |

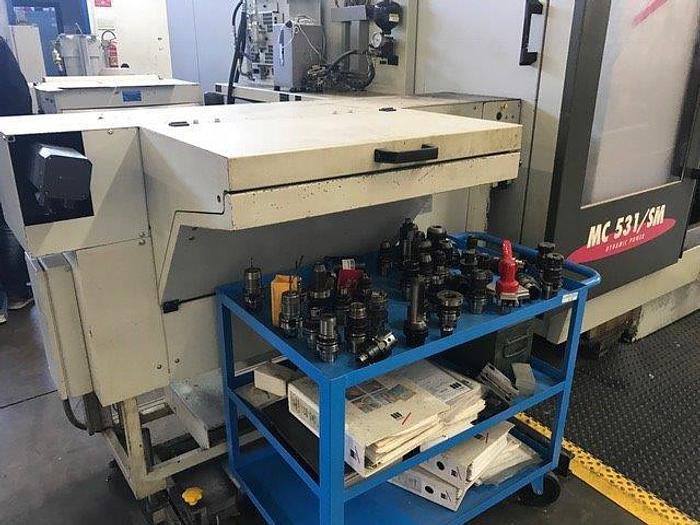

| Bar feeder | 800mm x Ø 80 mm |

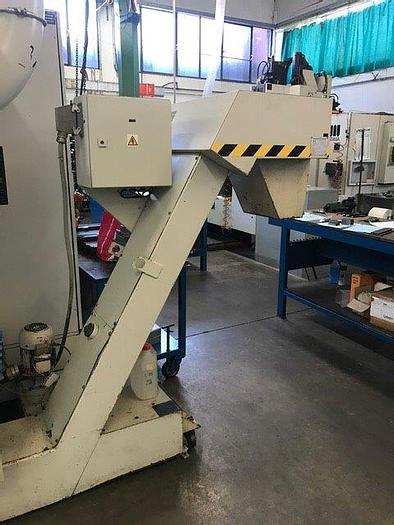

| Accessories | Chip conveyor |
